DESIGNED BY FARMERS

FOR FARMERS

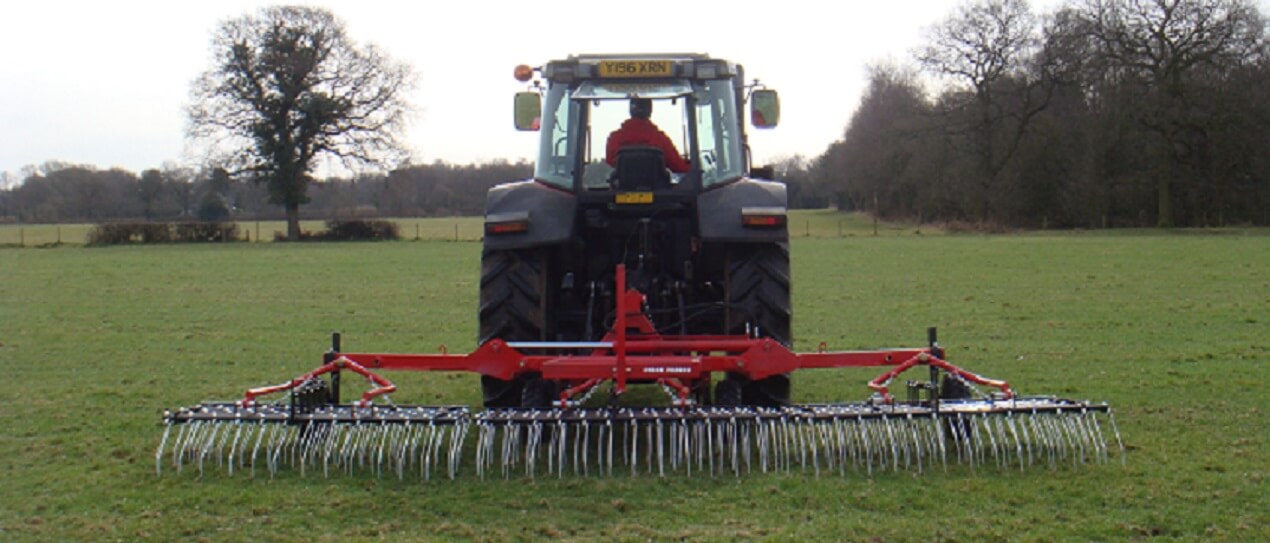

AG HARROW

Spring Tine Harrow designed for efficient seedbed or grassland management

The AG Harrow is a robust, high-performance, time-saving implement with maximum impact across flat or undulated ground conditions.

FEATURES

  • Tears out moss and dead grass to generate new growth in the pasture/seed bed
  • Breaks up the soil to encourage aeration within the ground
  • Breaks up muck and slurry after spreading
  • Levels and breaks up mole hills and ruts
  • Removes weeds from cereal seed beds
  • AG Seeder boxes can be added at any time

BENEFITS

  • 4 Height adjustable support wheels fitted as standard- this enables better contour flow across undulated ground conditions
  • Treaded run flat tyre fitted as standard- this enables them to be let down to reduce the amount of bounce in the harrow
  • 8mm tines fitted as standard
  • Quick adjustment to tine angle to suit all field conditions
  • Reinforced pivot pins on each section to make a more robust frame
  • Sliding sections to allow for maximum contour flow
  • Double coiled tines to allow for flexibility and a vibration action to make maximum affect to the ground
  • One frame which is standard for the 2m, 5m and 6m Harrow

SPECIFICATION

Model Working
width
(m)
Weight
(kg)
Sections Transport
Height / Width
(m)
HP Req
HARROW
200076 Tines
2 306 1x 2m
section
 / 2 15
HARROW
3000104 Tines
3 400 2 x 1.5m
section
 / 3 18
HARROW
5000180 Tines
5 650 Hydraulic Folding
1x2m
2x1.5m
2.35 / 2 45
HARROW
6000235 Tines
6 700 Hydraulic Folding
3x2m
2.8 / 2 55
